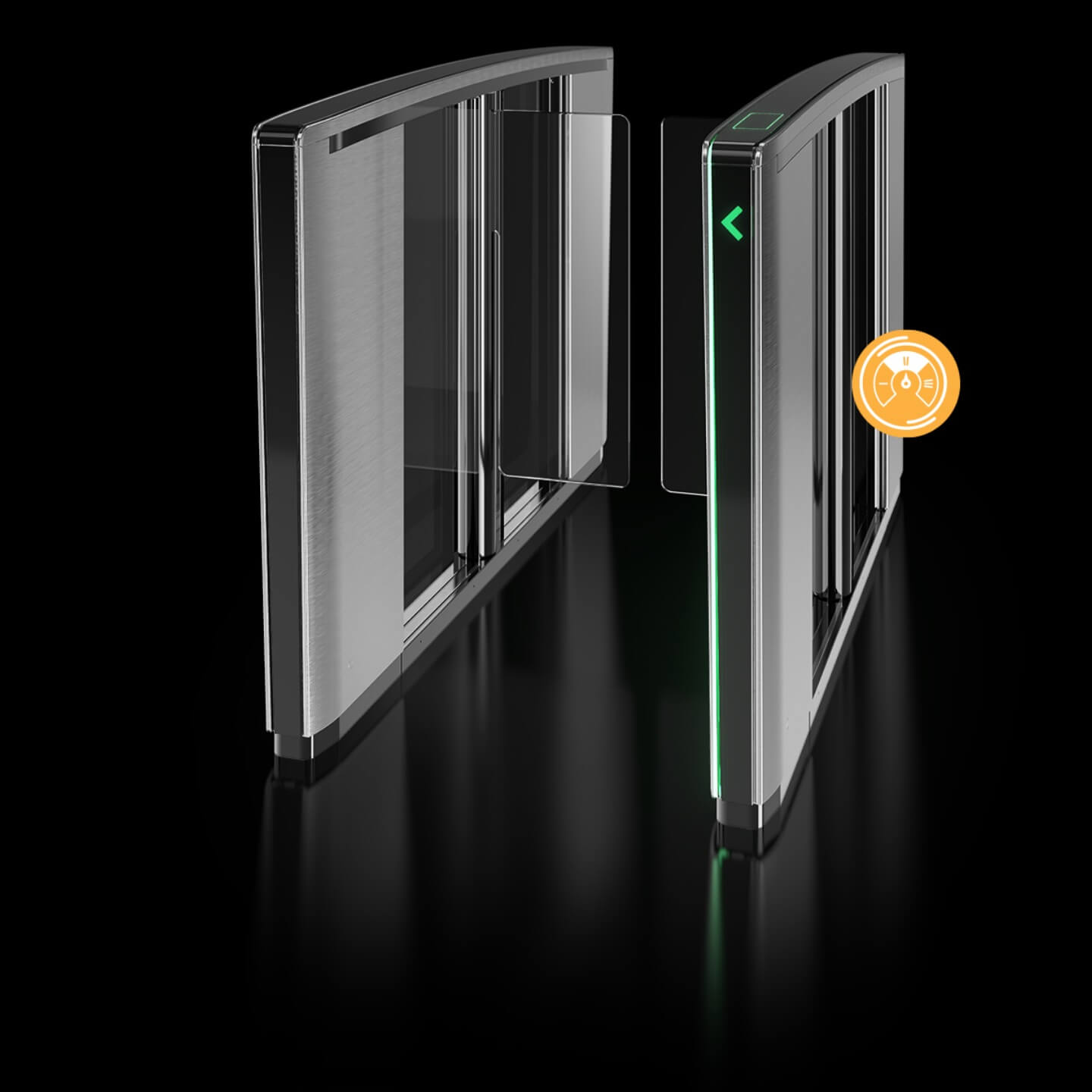

Boon edam Lifeline Speedlane Swing
-
Capacity (per minute in one direction)
20–30; dependent on access control system.
-
Standard unit size (w x l x h)
106 x 1776 x 1035 mm.
-
Standard dimensions
940 mm door wing height, 615 mm passage width, two wings.
-
Level Up high
1200–1800 mm door wing height, 615 mm passage width, two wings.
-
Level Up wide
940 mm door wing height, 915 mm passage width, suitable for wheelchair use width, two wings.
-
Level Up narrow
940 mm door wing height, 500 mm passage width, one wing.
SECURITY
-
Level Up Security
Extra jump-over detection, sound module, Tailgate+
-
Security level
Medium – detect
SAFETY
-
Standard
Fail-safe operation, fire alarm connection, safety sensors
AESTHETICS
-
Standard finish
Stainless Steel
-
Level Up aesthetics
Other colours and branding
TECHNOLOGY
-
Power Supply
110-240 VAC, 50 / 60 Hz
-
Operating Power
80W
-
Operating temperature
-15°C / +5°F to +50°C / +122°F
-
Weight
100 Kg
COMFORT
-
Intuition
Approach sensors, Feedback signals Lifeline LED guidance
