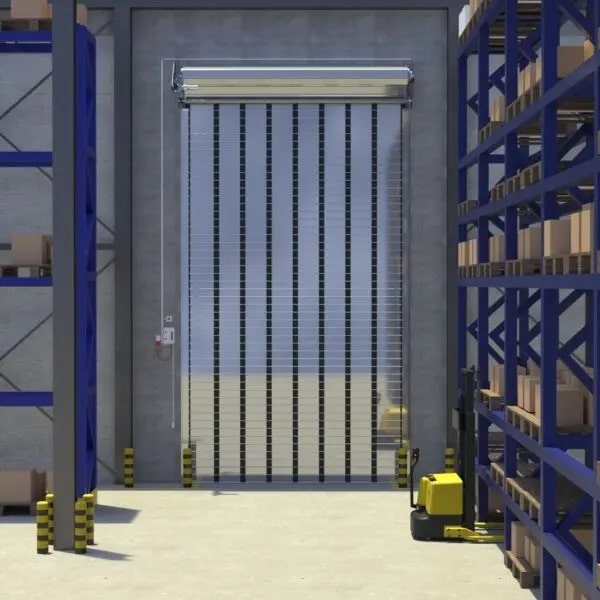

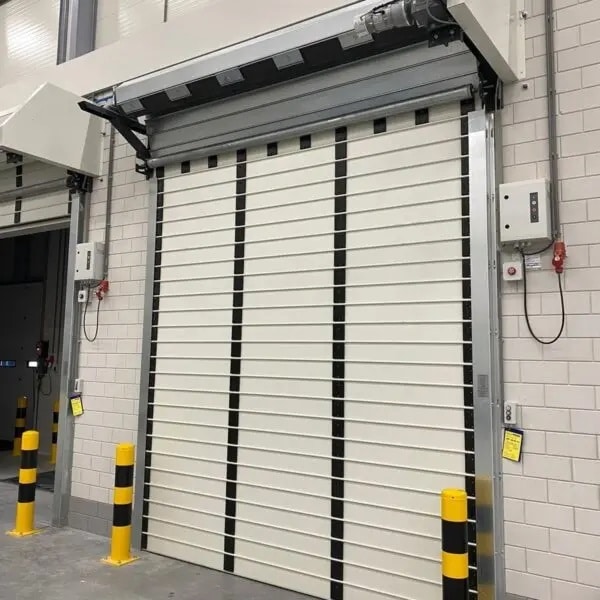

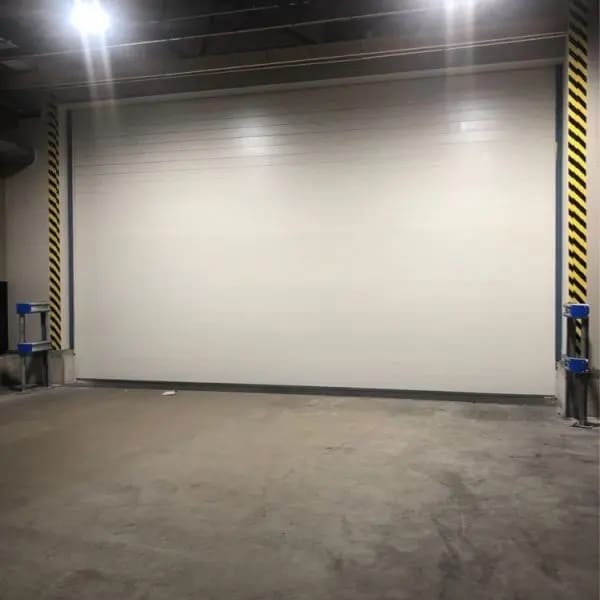

Fire shutter Jalusi RGC EI(1) 60 / EW 60

Fire shutter RGC EI(1) 60/EW60 is used when the fire requirement is EI class with a time of 60 minutes. It is also certified for EW 60. With EI classification, these fire shutters can be used in connection with escape routes. With this fire shutter, a fire protection is obtained that can be opened and closed on a daily basis both with a holding device (dead man’s grip) and impulse control. In case of impulse control, it is equipped with light curtains as pinch protection.
The fire shutter is equipped with a 400V external box motor with gravity closing failsafe function and chain drive. The delivery includes a control cabinet that takes care of the signals going in and out to ensure a safe and secure function, both in daily use but above all in a critical fire situation. The RGC EI(1) 60/EW60 can be obtained with a liquid barrier to a height of 300 mm or more to limit damage from liquids. The fire shutter is supplied with optical and acoustic alarm sensors to be mounted on both sides of the opening. The fire curtain is only mounted outside the so-called opening. wall mounting.

Maximum width: 9.25 meters
Maximum height: 8.0 meters
Maximum area: ± 40 m²
