Fire shutter Jalusi RGS EI(1)30 / EI(2)60

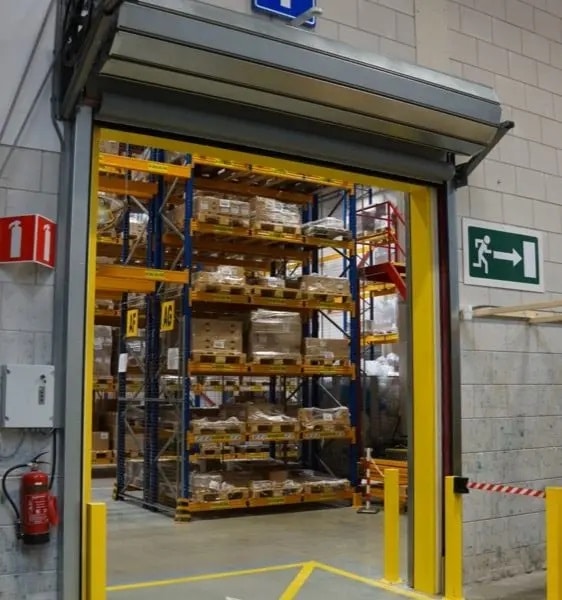

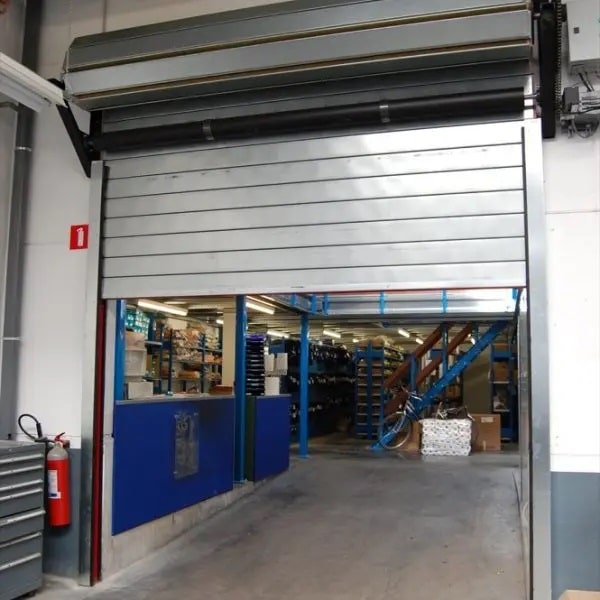

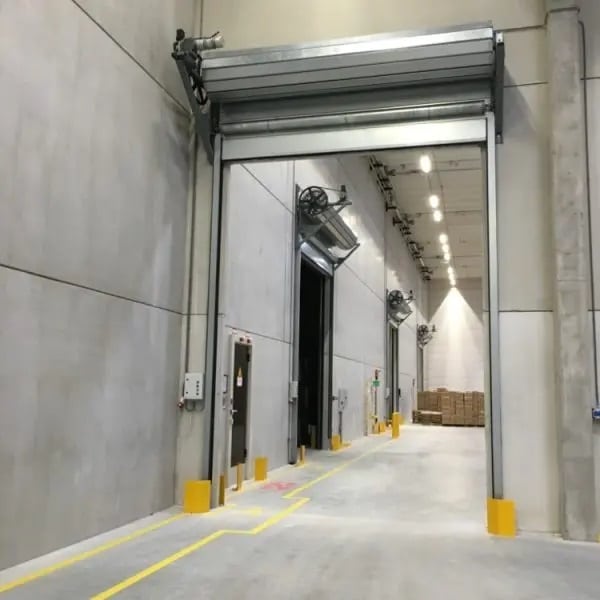

The fire shutter RGS EI(1)30/EI(2) 60 is made of steel and is used when the fire requirement is EI class with a time of 30 or 60 minutes. This is the fire shutter for the really large openings. With EI classification, these fire shutters can be used in connection with escape routes. With this fire shutter, a fire protection is obtained that can be opened and closed on a daily basis both with a holding device (dead man’s grip) and impulse control. In case of impulse control, it is equipped with light curtains as pinch protection.
The fire shutter is equipped with a 400V external box motor with gravity closing failsafe function and chain drive. The delivery includes a control cabinet that takes care of the signals going in and out to ensure a safe and secure function, both in daily use but above all in a critical fire situation. The fire shutter is supplied with optical and acoustic alarm sensors to be mounted on both sides of the opening. The fire shutter is only mounted outside the so-called opening. wall mounting

Max width: 9.0 meters
Max height: 9.0 meters
Max area : ± 45  m²
